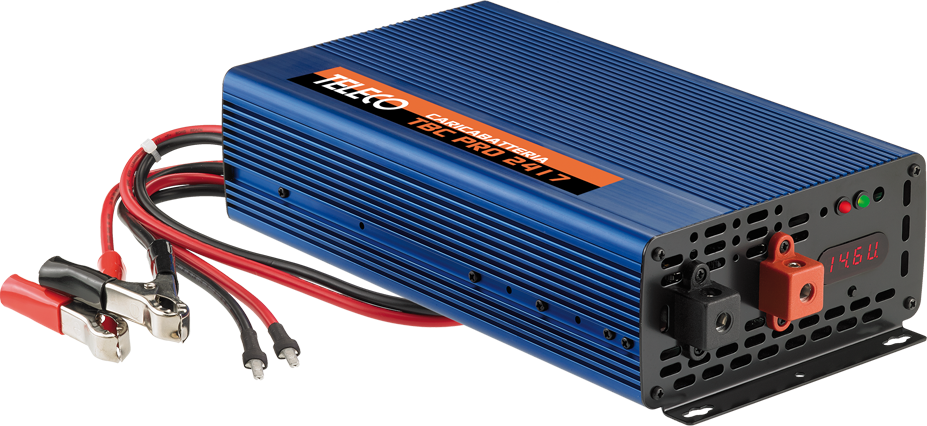

TBC PRO battery chargers are high performance devices that run on AC mains power supplies (universal range 100 – 240 V AC, 50 – 60 Hz); they have been designed and manufactured to charge TELECO lithium batteries. They have been designed with special functions to charge LiFePO4 cells. Moreover, they are compatible for use with lead-acid batteries.
Their 500 W power rating shortens charge times considerably.
The battery chargers have a display showing key parameters such as instantaneous voltage, instantaneous current, percentage charge and residual capacity.
Two models are available, one for 12 V batteries and one for 24 V batteries.
These battery chargers are compatible with all car park charging units
Supplied: 230 V AC mains cable, red/black cables with crocodile clips for attachment to battery
| Technical features |
TBC PRO 1230 | TBC PRO 2417 |
| Rated voltage | 14.6 V +/- 0.1 V | 29.2 V +/- 0.1 V |
| Rated current | 30 A | 17 A |
| Pre-charge 1 (@2.5 V/Cell) | 7.5 A | 4.25 A |
| Pre-charge 2 (@2.9 V/Cell) | 15 A | 8.5 A |
| Charge 3 (<30% Rated Current) | 8 A | 5 A |
| Power | 500 W | 500 W |
| Efficiency | >85 % full charge | >85 % full charge |
| Rated input voltage | 100 – 240 V | 100 – 240 V |
| Frequency | 47 – 63 Hz | 47 – 63 Hz |
| Polarity inversion | Protection with automatic shutdown | Protection with automatic shutdown |
| Short Circuit | Protection with automatic shutdown | Protection with automatic shutdown |
| Overload | Protection with current limit | Protection with current limit |
| Dimensions (LxDxH) | 152x275x70 mm | 152x275x70 mm |
| Weight | 2400 g | 2400 g |
