K2PS
Connection kit with diodes for 2 solar panels
2 Adapters with 10A diodes
2 double couplers for positive and negative
CPPConnectors for extension cables
| Specifications |
TSP 130W |
| Rated power (Pmax): | 130 W |
| Rated voltage Pmax (Vmp): | 19,4V |
| Rated voltage Pmax (Imp): | 6,71A |
| Open Circuit Voltage (Voc): | 23,4V |
| Short circuit current (Isc): | 7,12A |
| Module efficiency (m): | 16% |
| Operating temperature: | -40°C ~+85°C |
| Cable (length / section): | 650 mm/4 mm2 |

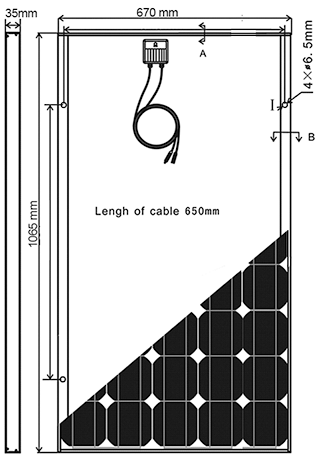

| Module dimensions (LxWxH) (without feet): | 1065x670x35 mm |
| Peso (senza piedi): | 7,8 kg |
K2PS
Connection kit with diodes for 2 solar panels
2 Adapters with 10A diodes
2 double couplers for positive and negative
CPPConnectors for extension cables
6 m extension cable
SPC 10/2
PWM 10A /12 – 24 Volt dual independent battery charge controller with selectable
charge percentage and temperature compensator. Protected against: overloads,
short circuits, reverse polarity.
Suitable for lead batteries with Liquid, Gel or AGM technology.
SPC 10/1
10 A /12 Volt single battery charge controller
Kit di fissaggio pannello solare:
4 ABS feet + spoiler for quick panel attachment with self-tapping screws
SPCA/TSP
Aluminium cable guide
TSP64
Narrow Plastic cable guide
Cleaning and glueing kit
(DEKASYL MS-5)
feet for rigid solar panel
TSP64 – Black
Narrow plastic cable guide. Black colour
SPC20/1
Charge controller 15A 12/24V for one battery
MPPT
Wireless charge controller 20 / 30A 12/24V for one battery
MPPT
Wireless charge controller
