DualClima 12500H / DualClima 8400H

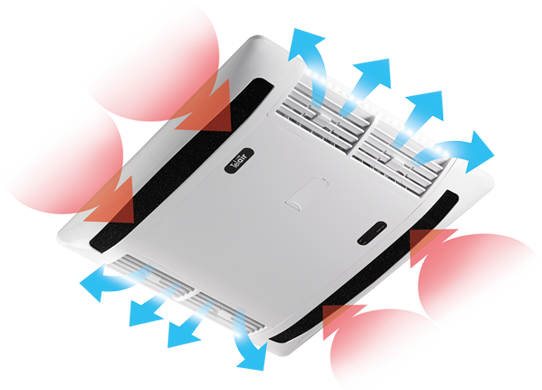

Extra-flat diffuser with sloping profile on all 4 sides. Direction-adjustable front and rear air outlets (horizontal and vertical).

GAS R32

230 volt



Automatic Air Conditioners with Heat Pump

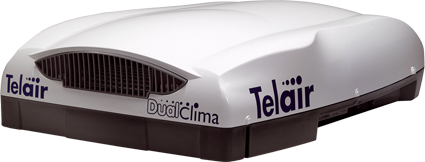

DUALCLIMA monoblock air conditioner specially designed to be installed on the roofs of medium-to-large campers and caravans. Special care has been taken to ensure low noise both inside and outside.

  • HEAT PUMP
    High-efficiency heat pump heating supplies more than double the heating power for the power supplied. The heat pump is effective for outside temperatures down to 4°C; below this temperature its efficiency is considerably reduced.
  • AUTOMATIC CONTROL
    By activating the AUTO function, the air conditioner selects the most suitable ventilation speed and the cooling or heating function automatically.
  • REMOTE CONTROL with a programmable timer and ON/OFF Switch for the Diffuser Light
  • Anti-freeze protection PROBES
  • INTERNAL FILTERS can be changed and washed
  • Suitable for roofs 30 – 70 mm thick



8400H

       2,5 KW (8.500 BTU)
       2,46 KW (8.400 BTU)
        TROPICAL TILL 55°C
       TIMER


12500H

        3,10 KW (10.800 BTU)
       3,08 KW (10.500 BTU)
       SOFT START
        TIMER

Technical features

DUALCLIMA 12500H DUALCLIMA 8400H
Cooling power 10.800 BTU / 3,17 kW 8.500 BTU / 2,50 kW
Heating power 10.500 BTU / 3,08 kW 8.400 BTU / 2,46 kW
Fan speed 3 + AUTO 3 + AUTO
Power supply 230 V – 50 Hz 230 V – 50 Hz
Average absorbed 6,1 A  4,3 A
current 5,9 A  4,1 A
Starting current 29 A (150 m sec.) 18 A (150 m sec.)
Absorbed 1400 W  990 W
power 1350 W  950 W
Required generator 2200 W 2200 W
Maximum air flow rate 480 m3/h 480 m3/h
Weight 39 kg. 36 kg.

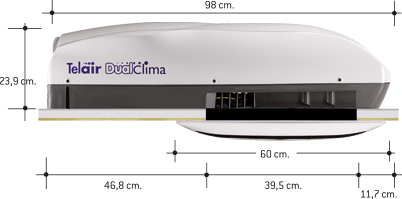

Dimensions 23,9x98x65 cm 23,9x98x65 cm
Air diffuser height 4,9x52x60 cm. 4,9x52x60 cm.
Wi-Fi option*
BLACK color option YES
*WiFi compatible with ICW interface (optional)
