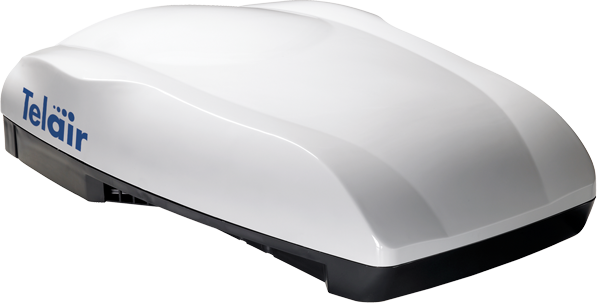

Silent Plus 8100H / Silent Plus 5900H

Wi-Fi OPTION

available

Compatible with

GAS R32

230 volt

Automatic air conditioners with heat pump

Specially designed for Camper Vans, the ideal solution for installation on small roofs without having to remove the skylight.
Silent, light and easy to install, it is secured to the roof both with the usual 40×40 cm roof-light opening and with a smaller 36×36 cm hole.
Featuring cutting-edge technology, its design exploits all the latest resources to offer an Ecologically Clean product.
An R32 gas refrigerant has been used as it has the lowest Global Warming Potential (GWP 675) that is currently found on air conditioners for vehicles, with a 70% reduction in environmental pollution power, compared to gases that have been used to date.
Two models are available with different refrigerating powers; both feature a heat pump. Cold, Hot and Automatic functions can be selected via the remote control, Timer function.
The CLIMA e-VAN 5400H model has been designed for low consumption. It can also be connected to a battery through a pure sine wave inverter of minimum 1500W (at full capacity) for use in moving vehicles.

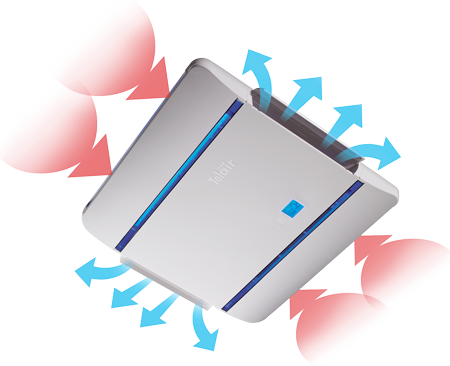

The small internal diffuser with its modern design is just approximately 4.2 cm thick and can easily be installed thanks to its small size. Equipped with a multi-function blue display and LED lights that can be switched on/off via the remote control.





5900H



        1730 W (5.900 BTU)



       1640 W (5600 BTU)



       TIMER



8100H



       2370 W (8.100 BTU)



       2300W (8.000 BTU)



       TIMER



Technical features

SILENT Plus 5900H SILENT Plus 8100H
Cooling power 5.900 BTU / 1730 W 8.100 BTU / 2370 W
Heating power 5.600 BTU / 1640 W 8.000 BTU / 2300 W
Fan speed 3 + AUTO 3 + AUTO
Power supply 230 V – 50 Hz 230 V – 50 Hz
Average absorbed  2,9 A  4,8 A
current 2,8 A  4,3 A
Starting current 15 A (15 m sec.) 18 A (15 m sec.)
Absorbed 680 W  1100 W
power 640 W  1000 W
Required generator 2200 W 2200 W
Maximum air flow rate 400 m3/h 450 m3/h
Weight 34 kg. 36 kg.
Dimensions 23,9x98x65 cm 23,9x98x65 cm
Air diffuser height 4,2x45x45 cm. 4,2x45x45 cm.
Wi-Fi option* YES YES
BLACK color option YES
*WiFi compatible with ICW interface (optional)
