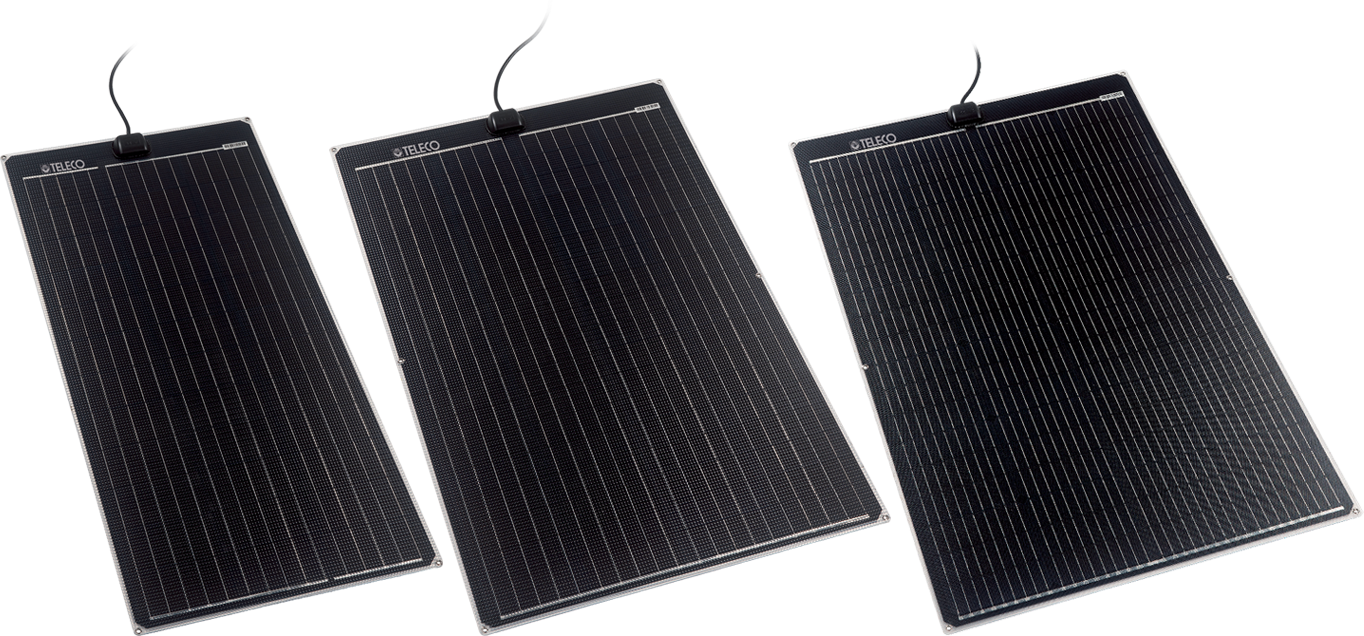

Black COOLFLEX Solar Panels

50% lighter than traditional rigid panels
Special surface finish to maximise the transmittance of sunlight
10 degrees maximum curvature
Double ETFE coating for improved weather resistance.
9-layer composition, with a layer of flame-resistant PCB for greater sturdiness and better heat dissipation

TBCF 100WS

Specifications	TBCF 100WS	TBCF 135WS	TBCF 150WS
Rated power (Pmax):	100 W	135 W	150 W
Rated voltage Pmax (Vmp):	19.8 V	19.8 V	19.8 V
Rated current Pmax (Imp):	5.05 A	6.82 A	7.58 A
Open circuit voltage (Voc):	23.3 V	23.3 V	23.3 V
Closed circuit current (Isc):	5.45 A	7.36 A	8.19 A
Module efficiency ( m):	22.42 %	22.42 %	22.42 %
Working temperature:	-20°C ~ + 75°C	-20°C ~ + 75°C	-20°C ~ + 75°C
Lead (length/cross-section):	3 m /2.5 mm2	3 m /2.5 mm2	3 m /2.5 mm2
Module size (LxWxH) (without feet):	1080x510x4 mm	1090x680x4 mm	1130x710x4 mm
Weight (without feet):	3.75 Kg	4.7 Kg	4.7 kg
